In the world of coaxial cables, RG 59 cable holds a prominent place. Known for its versatility, affordability, and efficiency, this cable is widely used for transmitting video signals in various applications. Whether in security systems, TV installations, or CCTV setups, RG 59 remains a go-to option for professionals and enthusiasts. By comparing it with RG 6 cable, understanding its construction, applications, and benefits becomes easier.
Table of Contents
Understanding RG 59 Cable Construction and Design

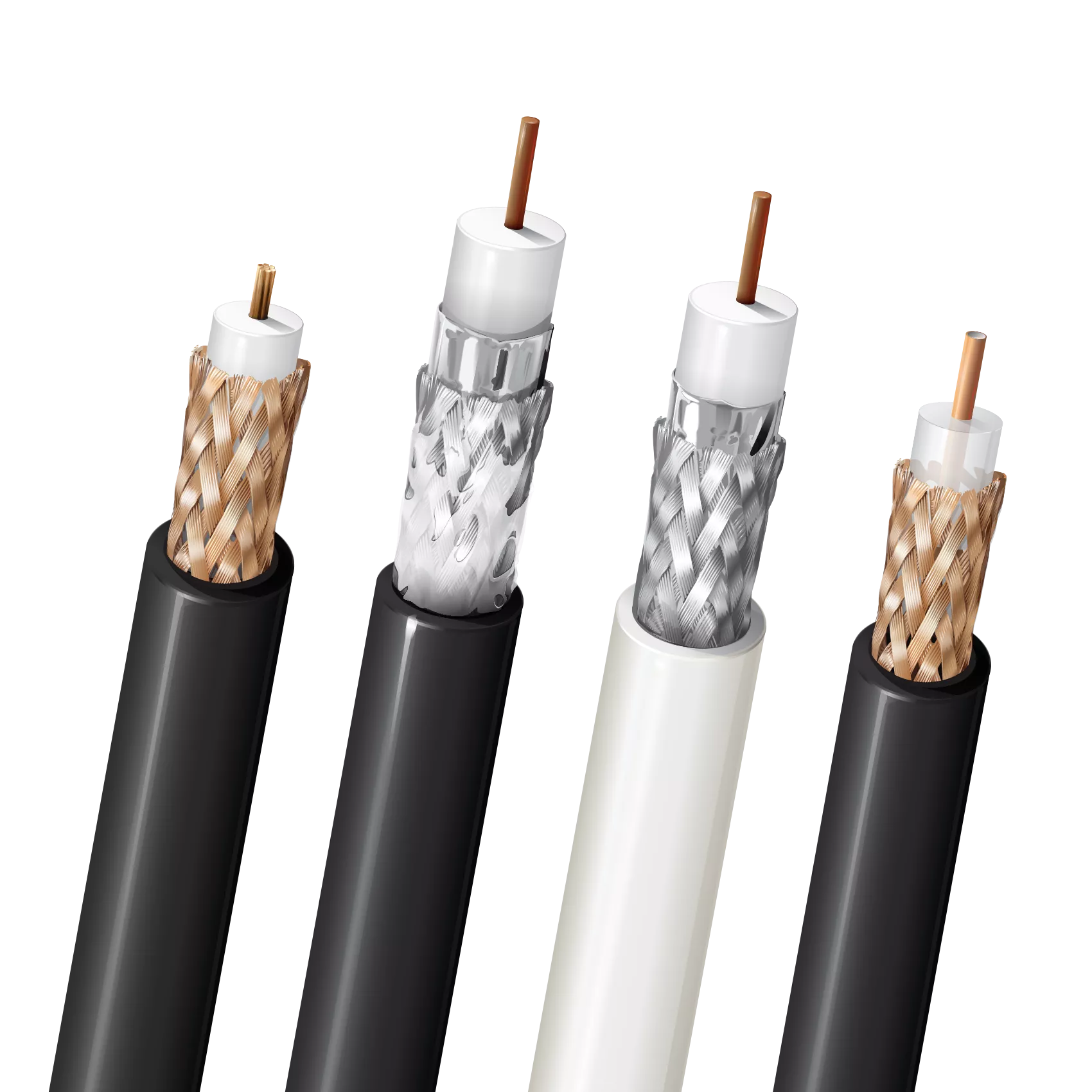

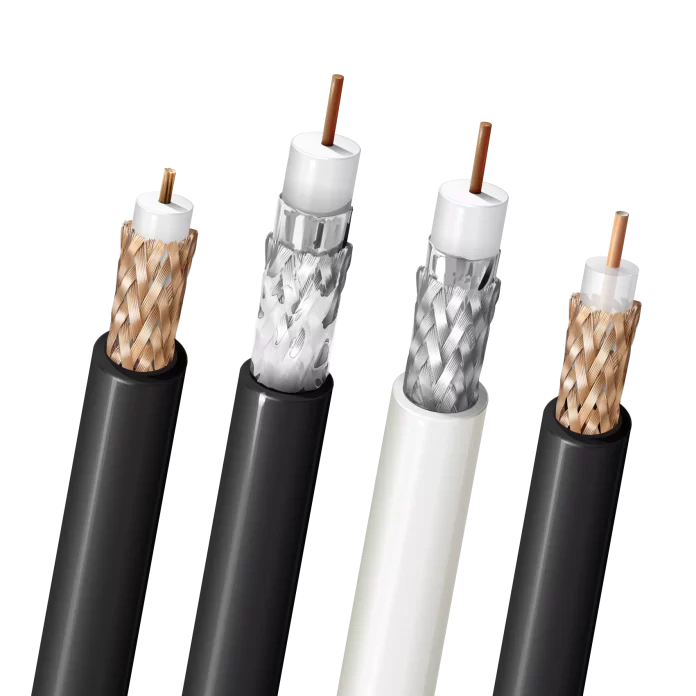

RG 59 cable is a type of coaxial cable designed for low-frequency signal transmission. Its construction consists of several critical components:
- Central Conductor: The central core, often made of copper or copper-clad steel, carries the signal. Copper offers excellent conductivity, making it an ideal choice for short-distance transmission.
- Dielectric Insulation: Surrounding the conductor is a layer of dielectric material, typically polyethylene, that helps maintain the signal’s strength and prevents energy loss.
- Shielding: RG 59 cable features one or more layers of shielding, such as aluminum foil or braided copper. This shielding protects against external interference, ensuring a clean and uninterrupted signal.
- Outer Jacket: The cable is encased in a durable plastic jacket, which protects it from physical damage and environmental factors.
While its design is effective for short-distance signal transmission, it differs from RG 6 cable in certain aspects. RG 6 has a thicker dielectric layer and better shielding, making it suitable for high-frequency signals over long distances.
Applications of RG 59 Cable
RG 59 cable is widely used in various fields due to its reliability and cost-effectiveness. Below are some of its primary applications:
Security and Surveillance Systems
RG 59 cable is a popular choice for CCTV systems. Its capability to transmit low-frequency video signals makes it ideal for connecting cameras to monitors or recording devices. Security professionals often prefer RG 59 due to its flexibility and ease of installation, especially in small or medium-sized setups.
Television and Satellite Installations
This cable is frequently used in older TV setups and short-distance antenna connections. While RG 6 cable has largely replaced RG 59 for modern satellite installations, the latter is still a viable choice for analog systems or basic home setups.
Audio and Video Transmission
In professional audio and video setups, RG 59 cable is used to transmit composite video signals and analog audio. It works well in scenarios where the signal doesn’t need to travel over long distances or handle high frequencies.
Custom Installations
The flexibility of RG 59 cable makes it ideal for custom installations in homes and commercial spaces. Whether used for intercom systems, alarm systems, or specific networking setups, it provides a reliable solution for low-frequency signal transmission.
RG 59 Cable vs. RG 6 Cable
When deciding between RG 59 and RG 6 cables, it’s essential to consider your application needs. Below are some key differences to help make the right choice:
Signal Frequency and Distance
RG 59 cable is best suited for low-frequency signals and short distances. Its thinner dielectric insulation results in higher signal loss over long distances, making it less ideal for modern, high-frequency applications like satellite TV.
RG 6 cable, on the other hand, is designed for high-frequency signals and longer distances. Its thicker insulation and superior shielding reduce signal loss, making it the preferred choice for satellite, cable TV, and internet connections.
Shielding
RG 6 cable offers better shielding compared to RG 59. This enhanced shielding protects against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring a cleaner signal, especially in environments with multiple electronic devices.
Flexibility and Installation
RG 59 cable is more flexible and easier to work with due to its thinner design. It’s often the preferred option for installations requiring sharp bends or tight spaces. However, RG 6 cable, while less flexible, offers better performance for applications requiring high signal integrity.
Cost
RG 59 is generally more affordable than RG 6, making it an attractive option for budget-conscious projects. However, the higher price of RG 6 is justified by its superior performance in high-frequency and long-distance applications.
Advantages of RG 59 Cable
Cost-Effectiveness
One of the most significant advantages of RG 59 cable is its affordability. It provides a reliable solution for short-distance, low-frequency applications without requiring a substantial investment. This makes it a popular choice for budget-sensitive projects.
Easy Installation
The cable’s thin design and flexibility make it easy to install, even in tight or confined spaces. Its user-friendly nature ensures that both professionals and DIY enthusiasts can work with it effortlessly.
Compatibility
RG 59 cable is compatible with a wide range of devices and connectors. This versatility makes it suitable for various setups, from home theater systems to professional security installations.
Reliable Signal Transmission
For applications within its intended range, RG 59 cable delivers excellent signal quality. Its shielding protects against interference, ensuring a clean and uninterrupted connection.
Choosing Between RG 59 and RG 6 Cable
The choice between RG 59 and RG 6 depends largely on your specific application requirements. Consider the following factors:
- Frequency Requirements: For high-frequency applications, RG 6 cable is the better choice. For low-frequency signals, RG 59 performs well.
- Distance: If your setup involves long cable runs, RG 6 offers lower signal loss. For short distances, RG 59 is sufficient.
- Budget: For cost-sensitive projects, RG 59 provides a more affordable solution without compromising reliability for its intended use.
- Installation Environment: In tight spaces or complex installations, RG 59’s flexibility makes it easier to work with.
Conclusion
RG 59 cable remains a reliable and cost-effective solution for transmitting low-frequency signals. While RG 6 cable excels in high-frequency, long-distance applications, RG 59 continues to be a preferred choice for CCTV, audio, and short-range video installations. By understanding the differences and applications of these cables, you can make an informed decision that aligns with your project’s requirements. Whether setting up a security system or configuring a TV connection, RG 59 cable offers dependable performance when used appropriately
