When it comes to coaxial cables, the term “RG cable” is frequently used to denote various types of cables that serve different purposes in the realm of electronics and telecommunications. RG, which stands for “Radio Guide,” was initially used to classify these cables for radio frequency applications. Today, RG cables are vital components in various technologies, including television, internet, and security systems. In this article, we’ll explore what RG cables are, compare RG 6 cable and RG 59 cable, and highlight their specific uses and benefits.

What is RG Cable?

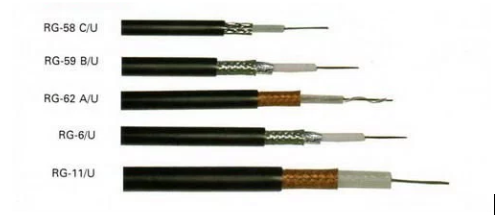

rg cable refers to a series of coaxial cables designed to transmit radio frequencies. Coaxial cables are distinguished by their construction, which includes a central conductor, insulating layer, shield, and outer insulating layer. This design helps in minimizing signal loss and interference. RG cables come in various types, each tailored for specific applications based on their shielding, conductor size, and overall construction.

RG 6 Cable: Features and Applications

RG 6 cable is one of the most commonly used coaxial cables in modern installations. It features a larger conductor and better insulation compared to its predecessors, which makes it highly effective for carrying signals over longer distances with minimal signal loss.

Key Features of RG 6 Cable:

  1. Improved Signal Quality: RG 6 cables offer superior shielding compared to RG 59 cables. They often come with a quad shield (a combination of foil and braided shields) which significantly reduces electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding is crucial for maintaining high-quality signal transmission, particularly for digital signals.
  2. Higher Bandwidth: With a thicker conductor and better insulation, RG 6 cables can handle higher bandwidths. This makes them ideal for broadband internet connections, high-definition television (HDTV), and digital cable services.
  3. Longer Cable Runs: RG 6 cables are designed to perform well over longer distances without significant signal degradation. This feature is particularly beneficial for large installations or setups that require running cables across extensive areas.

Typical Applications:

  • Cable Television (CATV): RG 6 cables are widely used in cable television systems due to their ability to deliver high-definition and high-speed signals.
  • Internet: For broadband internet services, RG 6 is often used to connect modems to routers or splitters.
  • Satellite TV: RG 6 cables are preferred in satellite TV installations for their excellent performance in transmitting signals from satellites to receivers.

RG 59 Cable: Features and Applications

RG 59 cable is another popular type of coaxial cable, though it is generally used for different applications compared to RG 6. It has a smaller conductor and less shielding, which makes it less suitable for high-frequency signals over long distances but adequate for other uses.

Key Features of RG 59 Cable:

  1. Cost-Effective: RG 59 cables are typically less expensive than RG 6 cables. This makes them a more budget-friendly option for certain applications where high-frequency signal loss is less of a concern.
  2. Flexible Construction: The smaller conductor and more flexible design of RG 59 cables make them easier to install in tight spaces. This flexibility can be advantageous in residential settings or small-scale installations.
  3. Suitable for Low-Frequency Applications: RG 59 cables are effective for low-frequency applications and short-distance transmissions. They are often used in closed-circuit television (CCTV) systems and analog video signals.

Typical Applications:

  • CCTV Systems: RG 59 is commonly used in video surveillance systems for transmitting video signals from cameras to recording devices.
  • Analog Video: For older analog video equipment, RG 59 provides a cost-effective solution for signal transmission.
  • Short Distance Connections: In setups where cables do not need to run over long distances, RG 59 cables are sufficient and economical.

Choosing the Right RG Cable

When deciding between RG 6 cable and RG 59 cable, it’s essential to consider the specific requirements of your installation. RG 6 cables are preferred for high-bandwidth applications, such as digital TV and high-speed internet, due to their superior shielding and signal handling capabilities. On the other hand, RG 59 cables are often adequate for lower frequency signals and shorter distances, such as in older video systems or budget-friendly installations.

In conclusion, RG cables play a crucial role in various electronic and telecommunications applications. Understanding the differences between RG 6 and RG 59 cables can help you make informed decisions about which type of cable best suits your needs. Whether you are upgrading your home entertainment system, setting up a new internet connection, or installing a CCTV system, choosing the right RG cable ensures optimal performance and reliability.
